Segment an image using the SAM 2 model and point prompts. More...

#include <sam2_segmentation.hpp>

Inheritance diagram for moveit_studio::behaviors::GetMasks2DFromPointQuery:

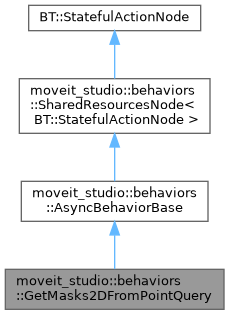

Collaboration diagram for moveit_studio::behaviors::GetMasks2DFromPointQuery:

Public Member Functions
	GetMasks2DFromPointQuery (const std::string &name, const BT::NodeConfiguration &config, const std::shared_ptr< moveit_studio::behaviors::BehaviorContext > &shared_resources, std::unique_ptr< GetMasks2DFromPointQueryInterface > sam2_interface=std::make_unique< GetMasks2DFromPointQueryInterface >())
	Constructor for the GetMasks2DFromPointQuery behavior.

Public Member Functions inherited from moveit_studio::behaviors::AsyncBehaviorBase
	AsyncBehaviorBase (const std::string &name, const BT::NodeConfiguration &config, const std::shared_ptr< BehaviorContext > &shared_resources)

virtual	~AsyncBehaviorBase ()=default

BT::NodeStatus	onStart () override
	Required implementation of BT::StatefulActionNode::onStart().

BT::NodeStatus	onRunning () override
	Required implementation of BT::StatefulActionNode::onRunning().

void	onHalted () override
	Required implementation of BT::StatefulActionNode::onHalted().

void	resetStatus ()
	Resets the internal status of this node.

Public Member Functions inherited from moveit_studio::behaviors::SharedResourcesNode< BT::StatefulActionNode >
	SharedResourcesNode (const std::string &name, const BT::NodeConfiguration &config, const std::shared_ptr< BehaviorContext > &shared_resources)
	Constructor for SharedResourcesNode. Called by BT::BehaviorTreeFactory when creating a new behavior tree containing this node.

Static Public Member Functions
static BT::PortsList	providedPorts ()
	Implementation of the required providedPorts() function for the Behavior.

static BT::KeyValueVector	metadata ()
	Implementation of the metadata() function for displaying metadata, such as Behavior description and subcategory, in the MoveIt Studio Developer Tool.

Protected Member Functions
tl::expected< bool, std::string >	doWork () override
	User-implemented function which handles executing the potentially-long-running process.

Protected Member Functions inherited from moveit_studio::behaviors::AsyncBehaviorBase
virtual tl::expected< void, std::string >	doHalt ()
	Optionally implement additional work needed to cleanly interrupt the async process.

void	notifyCanHalt ()
	Called when runAsync() finishes to notify onHalted() that the async process has finished.

Protected Attributes
std::unique_ptr< GetMasks2DFromPointQueryInterface >	sam2_interface_

Protected Attributes inherited from moveit_studio::behaviors::SharedResourcesNode< BT::StatefulActionNode >
std::shared_ptr< BehaviorContext >	shared_resources_

Detailed Description

Segment an image using the SAM 2 model and point prompts.

Constructor & Destructor Documentation

◆ GetMasks2DFromPointQuery()

moveit_studio::behaviors::GetMasks2DFromPointQuery::GetMasks2DFromPointQuery	(	const std::string &	name,
		const BT::NodeConfiguration &	config,
		const std::shared_ptr< moveit_studio::behaviors::BehaviorContext > &	shared_resources,
		std::unique_ptr< GetMasks2DFromPointQueryInterface >	sam2_interface = `std::make_unique<GetMasks2DFromPointQueryInterface>()`
	)

Constructor for the GetMasks2DFromPointQuery behavior.

Parameters

name	The name of a particular instance of this Behavior. This will be set by the behavior tree factory when this Behavior is created within a new behavior tree.
config	This contains runtime configuration info for this Behavior, such as the mapping between the Behavior's data ports on the behavior tree's blackboard. This will be set by the behavior tree factory when this Behavior is created within a new behavior tree.
shared_resources	Provides access to common resources such as the node handle and failure logger that are shared between all the behaviors that inherit from moveit_studio::behaviors::SharedResourcesNode.
sam2_interface	An implementation of the GetMasks2DFromPointQueryInterface. The default argument uses SAM 2 for segmentation.

An important limitation is that the members of the base Behavior class are not instantiated until after the initialize() function is called, so these classes should not be used within the constructor.

Member Function Documentation

◆ doWork()

tl::expected< bool, std::string > moveit_studio::behaviors::GetMasks2DFromPointQuery::doWork ( )

overrideprotectedvirtual

User-implemented function which handles executing the potentially-long-running process.

This function is called within an async process in a separate thread.

Returns: A tl::expected which contains a bool indicating task success if the process completed successfully or was canceled, or an error message if the process failed unexpectedly.

Implements moveit_studio::behaviors::AsyncBehaviorBase.

◆ metadata()

BT::KeyValueVector moveit_studio::behaviors::GetMasks2DFromPointQuery::metadata ( )

static

Implementation of the metadata() function for displaying metadata, such as Behavior description and subcategory, in the MoveIt Studio Developer Tool.

Returns: A BT::KeyValueVector containing the Behavior metadata.

◆ providedPorts()

BT::PortsList moveit_studio::behaviors::GetMasks2DFromPointQuery::providedPorts ( )

static

Implementation of the required providedPorts() function for the Behavior.

The BehaviorTree.CPP library requires that Behaviors must implement a static function named providedPorts() which defines their input and output ports. If the Behavior does not use any ports, this function must return an empty BT::PortsList. This function returns a list of ports with their names and port info, which is used internally by the behavior tree.

Returns: List of ports for the behavior.

Member Data Documentation

◆ sam2_interface_

std::unique_ptr<GetMasks2DFromPointQueryInterface> moveit_studio::behaviors::GetMasks2DFromPointQuery::sam2_interface_

protected

The documentation for this class was generated from the following files:
