moveit_studio::behaviors::GetParameterValueFromUser< T > Class Template Referenceabstract
This is a template class to get parameter values which are stored in a map in the Objective Server node. The map contains parameter overrides which are specified when creating the DoObjectiveSequence goal. Given a parameter name, send a service request to the Objective Server to retrieve user input value for the parameter named parameter_name.
More...
#include <get_parameter_from_user.hpp>

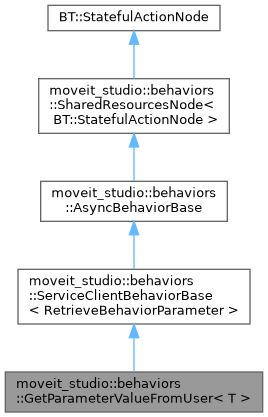

Inheritance diagram for moveit_studio::behaviors::GetParameterValueFromUser< T >:
Collaboration diagram for moveit_studio::behaviors::GetParameterValueFromUser< T >:
Public Member Functions | |
| GetParameterValueFromUser (const std::string &name, const BT::NodeConfiguration &config, const std::shared_ptr< BehaviorContext > &shared_resources) | |
| Constructor for GetParameterValueFromUser behavior. More... | |
 Public Member Functions inherited from moveit_studio::behaviors::ServiceClientBehaviorBase< RetrieveBehaviorParameter > | |
| ServiceClientBehaviorBase (const std::string &name, const BT::NodeConfiguration &config, const std::shared_ptr< BehaviorContext > &shared_resources) | |
| Constructs ServiceClientBehaviorBase using the RclcppClientInterface. More... | |
| ServiceClientBehaviorBase (const std::string &name, const BT::NodeConfiguration &config, const std::shared_ptr< BehaviorContext > &shared_resources, std::unique_ptr< ClientInterfaceBase< RetrieveBehaviorParameter >> client_interface) | |
| Constructs ServiceClientBehaviorBase using a user-provided implementation of ClientInterfaceBase. More... | |
| virtual | ~ServiceClientBehaviorBase ()=default |
| Public Member Functions inherited from moveit_studio::behaviors::AsyncBehaviorBase | |
| AsyncBehaviorBase (const std::string &name, const BT::NodeConfiguration &config, const std::shared_ptr< BehaviorContext > &shared_resources) | |
| virtual | ~AsyncBehaviorBase ()=default |
| BT::NodeStatus | onStart () override |
| Required implementation of BT::StatefulActionNode::onStart(). More... | |
| BT::NodeStatus | onRunning () override |
| Required implementation of BT::StatefulActionNode::onRunning(). More... | |
| void | onHalted () override |
| Required implementation of BT::StatefulActionNode::onHalted(). More... | |
| void | resetStatus () |
| Resets the internal status of this node. More... | |
| Public Member Functions inherited from moveit_studio::behaviors::SharedResourcesNode< BT::StatefulActionNode > | |
| SharedResourcesNode (const std::string &name, const BT::NodeConfiguration &config, const std::shared_ptr< BehaviorContext > &shared_resources) | |
| Constructor for SharedResourcesNode. Called by BT::BehaviorTreeFactory when creating a new behavior tree containing this node. More... | |
Additional Inherited Members | |
| Static Public Attributes inherited from moveit_studio::behaviors::ServiceClientBehaviorBase< RetrieveBehaviorParameter > | |
| static constexpr std::chrono::seconds | kTimeoutWaitForServiceServer |
| Protected Member Functions inherited from moveit_studio::behaviors::ServiceClientBehaviorBase< RetrieveBehaviorParameter > | |
| virtual tl::expected< std::chrono::duration< double >, std::string > | getResponseTimeout () |
| Optional user-provided function to set the timeout used when waiting for the service response. More... | |
| virtual tl::expected< bool, std::string > | processResponse (const typename ServiceT::Response &) |
| Optional user-provided function to process the service response after the service has finished. More... | |
| Protected Member Functions inherited from moveit_studio::behaviors::AsyncBehaviorBase | |
| void | notifyCanHalt () |
| Called when runAsync() finishes to notify onHalted() that the async process has finished. More... | |
| Protected Attributes inherited from moveit_studio::behaviors::SharedResourcesNode< BT::StatefulActionNode > | |
| std::shared_ptr< BehaviorContext > | shared_resources_ |
Detailed Description
template<typename T>
class moveit_studio::behaviors::GetParameterValueFromUser< T >
This is a template class to get parameter values which are stored in a map in the Objective Server node. The map contains parameter overrides which are specified when creating the DoObjectiveSequence goal. Given a parameter name, send a service request to the Objective Server to retrieve user input value for the parameter named parameter_name.
Warning: Behaviors derived from this class are currently for internal MoveIt Pro use only!
| Data Port Name | Port Type | Object Type |
|---|---|---|
| parameter_name | Input | std::string |
| parameter_value | Output | moveit_studio_sdk_msgs::msg::BehaviorParameter |
Constructor & Destructor Documentation
◆ GetParameterValueFromUser()
template<typename T >
|
explicit |
Constructor for GetParameterValueFromUser behavior.
- Parameters
-
name Name of the node. Must match the name used for this node in the behavior tree definition file (the .xml file). config Node configuration. Only used here because BehaviorTree.CPP expects a constructor signature with name and config first before custom constructor parameters. shared_resources Provides access to common resources such as the node handle and failure logger that are shared between all the behaviors that inherit from moveit_studio::behaviors::SharedResourcesNode.
The documentation for this class was generated from the following files:
