Takes a shared pointer to an existing MTC Task object via an input data port, plans the Task, and sets the solution with the lowest overall cost as an output data port. A service client sends over all the solutions to the MTC Solution Manager node which can be used for debugging. More...

#include <plan_mtc_task.hpp>

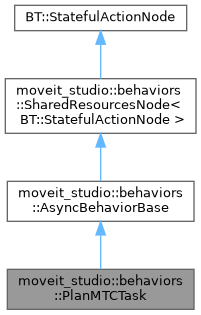

Inheritance diagram for moveit_studio::behaviors::PlanMTCTask:

[legend]

Collaboration diagram for moveit_studio::behaviors::PlanMTCTask:

[legend]

Public Member Functions
	PlanMTCTask (const std::string &name, const BT::NodeConfiguration &config, const std::shared_ptr< BehaviorContext > &shared_resources)

Public Member Functions inherited from moveit_studio::behaviors::AsyncBehaviorBase
	AsyncBehaviorBase (const std::string &name, const BT::NodeConfiguration &config, const std::shared_ptr< BehaviorContext > &shared_resources)

virtual	~AsyncBehaviorBase ()=default

BT::NodeStatus	onStart () override
	Required implementation of BT::StatefulActionNode::onStart(). More...

BT::NodeStatus	onRunning () override
	Required implementation of BT::StatefulActionNode::onRunning(). More...

void	onHalted () override
	Required implementation of BT::StatefulActionNode::onHalted(). More...

void	resetStatus ()
	Resets the internal status of this node. More...

Public Member Functions inherited from moveit_studio::behaviors::SharedResourcesNode< BT::StatefulActionNode >
	SharedResourcesNode (const std::string &name, const BT::NodeConfiguration &config, const std::shared_ptr< BehaviorContext > &shared_resources)
	Constructor for SharedResourcesNode. Called by BT::BehaviorTreeFactory when creating a new behavior tree containing this node. More...

Static Public Member Functions
static BT::PortsList	providedPorts ()

static BT::KeyValueVector	metadata ()

Additional Inherited Members
Protected Member Functions inherited from moveit_studio::behaviors::AsyncBehaviorBase
void	notifyCanHalt ()
	Called when runAsync() finishes to notify onHalted() that the async process has finished. More...

Protected Attributes inherited from moveit_studio::behaviors::SharedResourcesNode< BT::StatefulActionNode >
std::shared_ptr< BehaviorContext >	shared_resources_

Detailed Description

Takes a shared pointer to an existing MTC Task object via an input data port, plans the Task, and sets the solution with the lowest overall cost as an output data port. A service client sends over all the solutions to the MTC Solution Manager node which can be used for debugging.

Data Port Name	Port Type	Object Type
task	Input	std::shared_ptr<moveit::task_constructor::Task>
solution	Output	moveit_task_constructor_msgs::msg::Solution

Constructor & Destructor Documentation

◆ PlanMTCTask()

moveit_studio::behaviors::PlanMTCTask::PlanMTCTask	(	const std::string &	name,
		const BT::NodeConfiguration &	config,
		const std::shared_ptr< BehaviorContext > &	shared_resources
	)

Member Function Documentation

◆ metadata()

BT::KeyValueVector moveit_studio::behaviors::PlanMTCTask::metadata ( )

static

◆ providedPorts()

BT::PortsList moveit_studio::behaviors::PlanMTCTask::providedPorts ( )

static

The documentation for this class was generated from the following files:
