moveit_studio::behaviors::GetGraspableObjectsFromMasks3D Class Reference

Finds objects in point cloud segments represented by 3D masks. More...

#include <get_graspable_objects_from_masks3d.hpp>

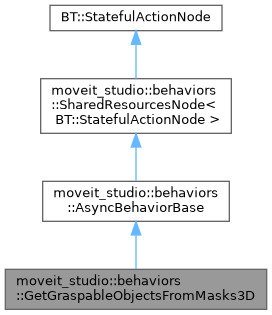

Inheritance diagram for moveit_studio::behaviors::GetGraspableObjectsFromMasks3D:
Collaboration diagram for moveit_studio::behaviors::GetGraspableObjectsFromMasks3D:

Public Member Functions

 GetGraspableObjectsFromMasks3D (const std::string &name, const BT::NodeConfiguration &config, const std::shared_ptr< BehaviorContext > &shared_resources)

 GetGraspableObjectsFromMasks3D (const std::string &name, const BT::NodeConfiguration &config, const std::shared_ptr< BehaviorContext > &shared_resources, std::unique_ptr< VisualToolsInterfaceBase > visual_tools)
 Alternate constructor to allow mocking the rviz_visual_tools interface. More...

- Public Member Functions inherited from moveit_studio::behaviors::AsyncBehaviorBase
 AsyncBehaviorBase (const std::string &name, const BT::NodeConfiguration &config, const std::shared_ptr< BehaviorContext > &shared_resources)

virtual ~AsyncBehaviorBase ()=default

BT::NodeStatus onStart () override
 Required implementation of BT::StatefulActionNode::onStart(). More...

BT::NodeStatus onRunning () override
 Required implementation of BT::StatefulActionNode::onRunning(). More...

void onHalted () override
 Required implementation of BT::StatefulActionNode::onHalted(). More...

void resetStatus ()
 Resets the internal status of this node. More...

- Public Member Functions inherited from moveit_studio::behaviors::SharedResourcesNode< BT::StatefulActionNode >
 SharedResourcesNode (const std::string &name, const BT::NodeConfiguration &config, const std::shared_ptr< BehaviorContext > &shared_resources)
 Constructor for SharedResourcesNode. Called by BT::BehaviorTreeFactory when creating a new behavior tree containing this node. More...


Static Public Member Functions

static BT::PortsList providedPorts ()

static BT::KeyValueVector metadata ()


Protected Member Functions

tl::expected< bool, std::string > doWork () override
 User-implemented function which handles executing the potentially-long-running process. More...

- Protected Member Functions inherited from moveit_studio::behaviors::AsyncBehaviorBase
virtual tl::expected< void, std::string > doHalt ()
 Optionally implement additional work needed to cleanly interrupt the async process. More...

void notifyCanHalt ()
 Called when runAsync() finishes to notify onHalted() that the async process has finished. More...


Additional Inherited Members

- Protected Attributes inherited from moveit_studio::behaviors::SharedResourcesNode< BT::StatefulActionNode >
std::shared_ptr< BehaviorContextshared_resources_


Detailed Description

Finds objects in point cloud segments represented by 3D masks.

The output GraspableObjects will be transformed so that their parent frame is the frame defined by the base_frame config parameter.

Data Port Name Port Type Object Type
point_cloud input sensor_msgs::msg::PointCloud2
masks3d input std::vector<moveit_studio_vision_msgs::msg::Mask3D>
base_frame input std::string
plane_inlier_threshold input double
minimum_face_area input double
face_separation_threshold input double
graspable_objects output std::vector<moveit_msgs::msg::GraspableObject>

Constructor & Destructor Documentation

◆ GetGraspableObjectsFromMasks3D() [1/2]

moveit_studio::behaviors::GetGraspableObjectsFromMasks3D::GetGraspableObjectsFromMasks3D ( const std::string &  name,
const BT::NodeConfiguration &  config,
const std::shared_ptr< BehaviorContext > &  shared_resources
)

◆ GetGraspableObjectsFromMasks3D() [2/2]

moveit_studio::behaviors::GetGraspableObjectsFromMasks3D::GetGraspableObjectsFromMasks3D ( const std::string &  name,
const BT::NodeConfiguration &  config,
const std::shared_ptr< BehaviorContext > &  shared_resources,
std::unique_ptr< VisualToolsInterfaceBase >  visual_tools
)

Alternate constructor to allow mocking the rviz_visual_tools interface.

Member Function Documentation

◆ doWork()

tl::expected< bool, std::string > moveit_studio::behaviors::GetGraspableObjectsFromMasks3D::doWork ( )
overrideprotectedvirtual

User-implemented function which handles executing the potentially-long-running process.

This function is called within an async process in a separate thread.

Returns
A tl::expected which contains a bool indicating task success if the process completed successfully or was canceled, or an error message if the process failed unexpectedly.

Implements moveit_studio::behaviors::AsyncBehaviorBase.

◆ metadata()

BT::KeyValueVector moveit_studio::behaviors::GetGraspableObjectsFromMasks3D::metadata ( )
static

◆ providedPorts()

BT::PortsList moveit_studio::behaviors::GetGraspableObjectsFromMasks3D::providedPorts ( )
static

The documentation for this class was generated from the following files:
