Detects AprilTag markers from an image. More...

#include <detect_apriltags.hpp>

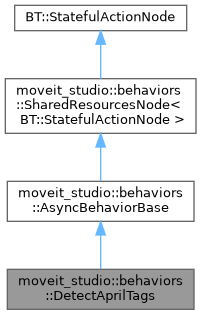

Inheritance diagram for moveit_studio::behaviors::DetectAprilTags:

[legend]

Collaboration diagram for moveit_studio::behaviors::DetectAprilTags:

[legend]

Public Member Functions
	DetectAprilTags (const std::string &name, const BT::NodeConfiguration &config, const std::shared_ptr< BehaviorContext > &shared_resources)

Public Member Functions inherited from moveit_studio::behaviors::AsyncBehaviorBase
	AsyncBehaviorBase (const std::string &name, const BT::NodeConfiguration &config, const std::shared_ptr< BehaviorContext > &shared_resources)

virtual	~AsyncBehaviorBase ()=default

BT::NodeStatus	onStart () override
	Required implementation of BT::StatefulActionNode::onStart().

BT::NodeStatus	onRunning () override
	Required implementation of BT::StatefulActionNode::onRunning().

void	onHalted () override
	Required implementation of BT::StatefulActionNode::onHalted().

void	resetStatus ()
	Resets the internal status of this node.

Public Member Functions inherited from moveit_studio::behaviors::SharedResourcesNode< BT::StatefulActionNode >
	SharedResourcesNode (const std::string &name, const BT::NodeConfiguration &config, const std::shared_ptr< BehaviorContext > &shared_resources)
	Constructor for SharedResourcesNode. Called by BT::BehaviorTreeFactory when creating a new behavior tree containing this node.

Static Public Member Functions
static BT::PortsList	providedPorts ()

static BT::KeyValueVector	metadata ()

Additional Inherited Members
Protected Member Functions inherited from moveit_studio::behaviors::AsyncBehaviorBase
virtual tl::expected< void, std::string >	doHalt ()
	Optionally implement additional work needed to cleanly interrupt the async process.

void	notifyCanHalt ()
	Called when runAsync() finishes to notify onHalted() that the async process has finished.

Protected Attributes inherited from moveit_studio::behaviors::SharedResourcesNode< BT::StatefulActionNode >
std::shared_ptr< BehaviorContext >	shared_resources_

Detailed Description

Detects AprilTag markers from an image.

Data Port Name	Port Type	Object Type
image	input	sensor_msgs::msg::Image
camera_info	input	sensor_msgs::msg::CameraInfo
parameters	input	YAML::Node
detections	output	moveit_studio_vision_msgs::msg::ObjectDetectionArray

Constructor & Destructor Documentation

moveit_studio::behaviors::DetectAprilTags::DetectAprilTags	(	const std::string &	name,
		const BT::NodeConfiguration &	config,
		const std::shared_ptr< BehaviorContext > &	shared_resources
	)

BT::KeyValueVector moveit_studio::behaviors::DetectAprilTags::metadata ( )

static

BT::PortsList moveit_studio::behaviors::DetectAprilTags::providedPorts ( )

static

The documentation for this class was generated from the following files:
