Given an input point cloud, finds the oriented bounding box (OBB) using pcl::MomentOfInertiaEstimation and outputs that as a center pose and box dimensions. The OBB orientation is disambiguated by choosing the orientation closest to the reference_pose. More...

#include <get_oriented_bounding_box_from_pointcloud.hpp>

Inheritance diagram for moveit_pro::behaviors::GetOrientedBoundingBoxFromPointCloud:

[legend]

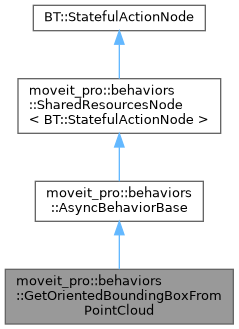

Collaboration diagram for moveit_pro::behaviors::GetOrientedBoundingBoxFromPointCloud:

[legend]

Public Member Functions
	GetOrientedBoundingBoxFromPointCloud (const std::string &name, const BT::NodeConfiguration &config, const std::shared_ptr< BehaviorContext > &shared_resources)

Public Member Functions inherited from moveit_pro::behaviors::AsyncBehaviorBase
	AsyncBehaviorBase (const std::string &name, const BT::NodeConfiguration &config, const std::shared_ptr< BehaviorContext > &shared_resources)

	~AsyncBehaviorBase () override=default

BT::NodeStatus	onStart () override
	Required implementation of BT::StatefulActionNode::onStart().

BT::NodeStatus	onRunning () override
	Required implementation of BT::StatefulActionNode::onRunning().

void	onHalted () override
	Required implementation of BT::StatefulActionNode::onHalted().

void	resetStatus ()
	Resets the internal status of this node.

Public Member Functions inherited from moveit_pro::behaviors::SharedResourcesNode< BT::StatefulActionNode >
	SharedResourcesNode (const std::string &name, const BT::NodeConfiguration &config, const std::shared_ptr< BehaviorContext > &shared_resources)
	Constructor for SharedResourcesNode. Called by BT::BehaviorTreeFactory when creating a new behavior tree containing this node.

Static Public Member Functions
static BT::PortsList	providedPorts ()

static BT::KeyValueVector	metadata ()

Protected Member Functions
tl::expected< bool, std::string >	doWork () override
	User-implemented function which handles executing the potentially-long-running process.

Protected Member Functions inherited from moveit_pro::behaviors::AsyncBehaviorBase
virtual tl::expected< void, std::string >	doHalt ()
	Optionally implement additional work needed to cleanly interrupt the async process.

void	notifyCanHalt ()
	Called when runAsync() finishes to notify onHalted() that the async process has finished.

Additional Inherited Members
Protected Attributes inherited from moveit_pro::behaviors::SharedResourcesNode< BT::StatefulActionNode >
std::shared_ptr< BehaviorContext >	shared_resources_

Detailed Description

Given an input point cloud, finds the oriented bounding box (OBB) using pcl::MomentOfInertiaEstimation and outputs that as a center pose and box dimensions. The OBB orientation is disambiguated by choosing the orientation closest to the reference_pose.

Data Port Name	Port Type	Object Type
point_cloud	input	sensor_msgs::msg::PointCloud2
reference_pose	input	geometry_msgs::msg::PoseStamped
box_center_pose	output	geometry_msgs::msg::PoseStamped
box_dimensions	output	std::vector<double>

Constructor & Destructor Documentation

◆ GetOrientedBoundingBoxFromPointCloud()

moveit_pro::behaviors::GetOrientedBoundingBoxFromPointCloud::GetOrientedBoundingBoxFromPointCloud	(	const std::string &	name,
		const BT::NodeConfiguration &	config,
		const std::shared_ptr< BehaviorContext > &	shared_resources
	)

Member Function Documentation

◆ doWork()

tl::expected< bool, std::string > moveit_pro::behaviors::GetOrientedBoundingBoxFromPointCloud::doWork ( )

overrideprotectedvirtual

User-implemented function which handles executing the potentially-long-running process.

This function is called within an async process in a separate thread.

Returns: A tl::expected which contains a bool indicating task success if the process completed successfully or was canceled, or an error message if the process failed unexpectedly.

Implements moveit_pro::behaviors::AsyncBehaviorBase.

◆ metadata()

BT::KeyValueVector moveit_pro::behaviors::GetOrientedBoundingBoxFromPointCloud::metadata ( )

static

◆ providedPorts()

BT::PortsList moveit_pro::behaviors::GetOrientedBoundingBoxFromPointCloud::providedPorts ( )

static

The documentation for this class was generated from the following files:
